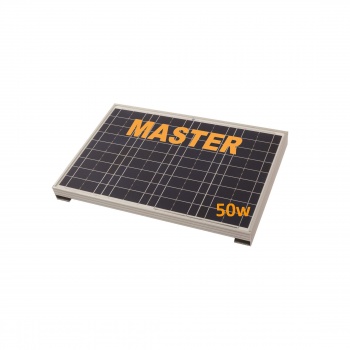

Vision Plus Solar 50 Master Panel

The Vision Plus Solar 50 Master Panel Charger System is a comprehensive and expandable solar power solution, perfect for those seeking power independence but uncertain about their specific power requirements.

The system is centred around either a 50W or 100W Master Panel, combined with a high specification Power Controller that allows for the seamless addition of more Add On Panels (not included), granting a maximum capacity of 250W. For personalised assistance in setting up the system, the Vision Plus After Sales Department is available for guidance.

The installation process is straightforward: after installing the Master panel, Add On panels can easily be attached using a glue-based method, eliminating the need for special tools or drilling holes.

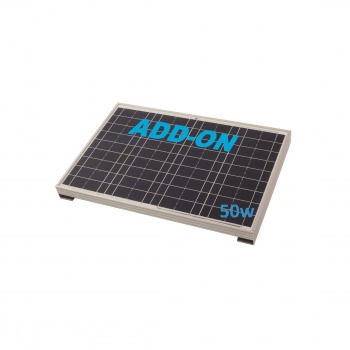

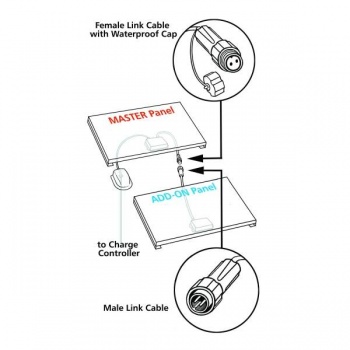

The optional Add On Panels come equipped with a female link cable featuring an integrated waterproof cap, along with 3 meters of male link cable. This setup offers maximum flexibility when positioning additional panels on the roof.

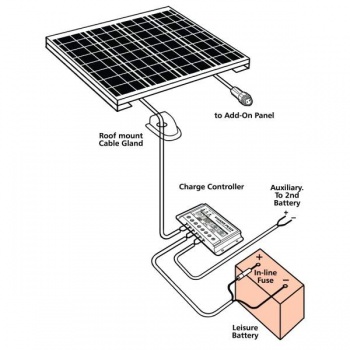

The package includes the following components:

  • 50 Watt Solar Panel Master Panel

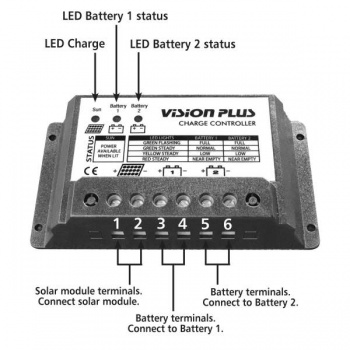

  • 20 Amp Charge Regulator with 2 batter outputs (Battery 1 is prioritised and, charged up to 70%, the charge is equally distributed to both batteries)
  • Roof mount cable gland
  • 5 meters of power cable
  • 350mm female link-cable with a waterproof cap
  • In-line fuse for added safety
  • Connectors & Fittings
  • Full instructions for setup and usage

Key specification of the Vision Plus Solar 50 Master Battery Charger System include:

  • 20 year warranty on cell output, ensuring long-lasting performance and reliability
  • IP68 Rating for Link Plus, indicating strong resistance to dust and water ingress, making the system suitable for various environmental conditions
  • Panel Dimensions: 660 x 505 x 57mm, providing a compact and manageable size for installation
  • Panel Weight: 4.2kg, making it relatively lightweight for ease of handling and mounting
  • Operating Temperature: -40°C to +85°C, ensuring efficient operation even in extreme temperature conditions
